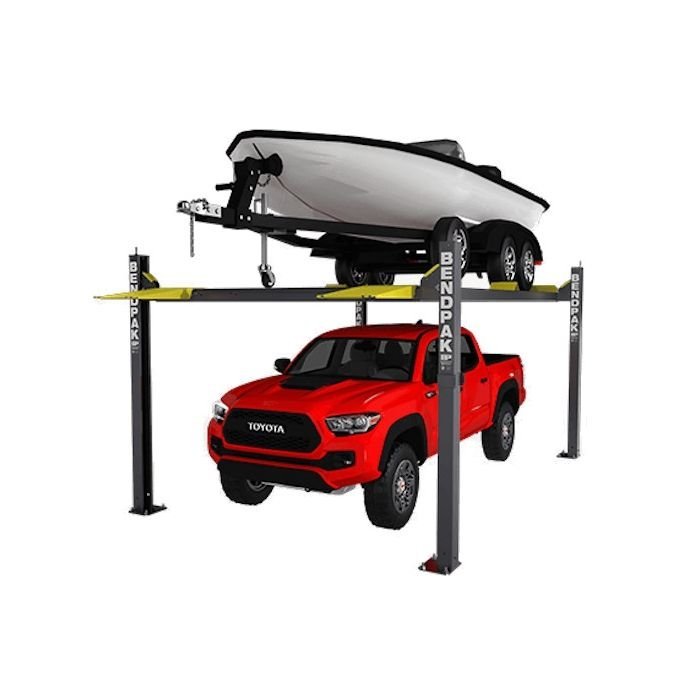

Why do we need a boat lift or trailer lift? Because the typical car or truck lift is just not built to be wide enough to accommodate a boat or trailer. Boat and utility trailers typically are just too wide to fit on a standard auto lift. So until now, boat owners had no alternative. Avoid rust, blemishes, rot, cold damage and more with BendPak’s HD-7500BLX boat storage solution. This is the most cost-effective and safest way to dry dock your boat. BendPak is always in front with innovation and quality. BendPak manufactures some of the most technically advanced automobile lifts in the industry.

Features

• 7,500-pound lifting capacity
• Two different lifting heights to choose from
• Electric / hydraulic power system
• Internal anti-sway slider blocks in each column
• Both models feature heavy-duty 3/8″ aircraft cable
• Multi-position safety locks in each column
• Optional 4,500-lb. capacity jack available (RJ-45)
• Two different ramp lengths to choose
• Runways include rail-kit for optional accessories
• Single hydraulic cylinder underneath runway
• Over-sized self-lubricating cable rollers
• Rugged 1-1/4″ roller axles
• Adjustable lock ladders
• Push-button pneumatic safety release
• Durable powder coat finish

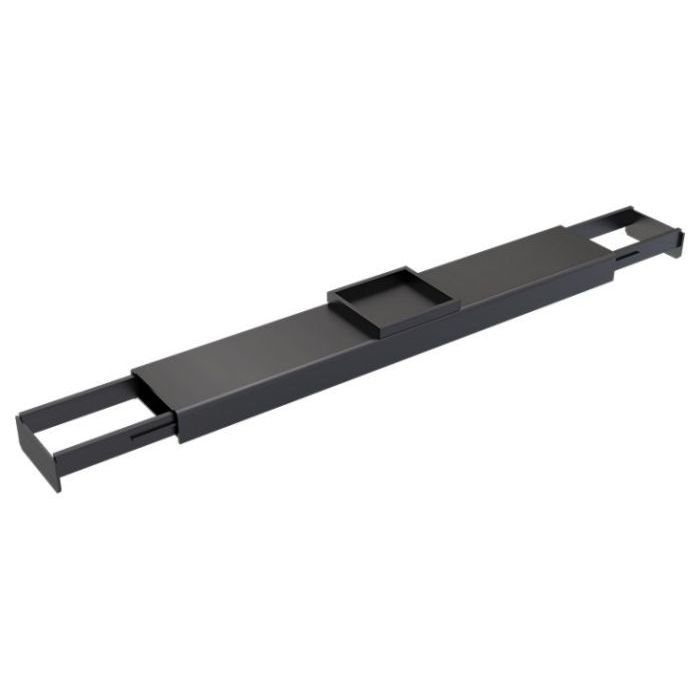

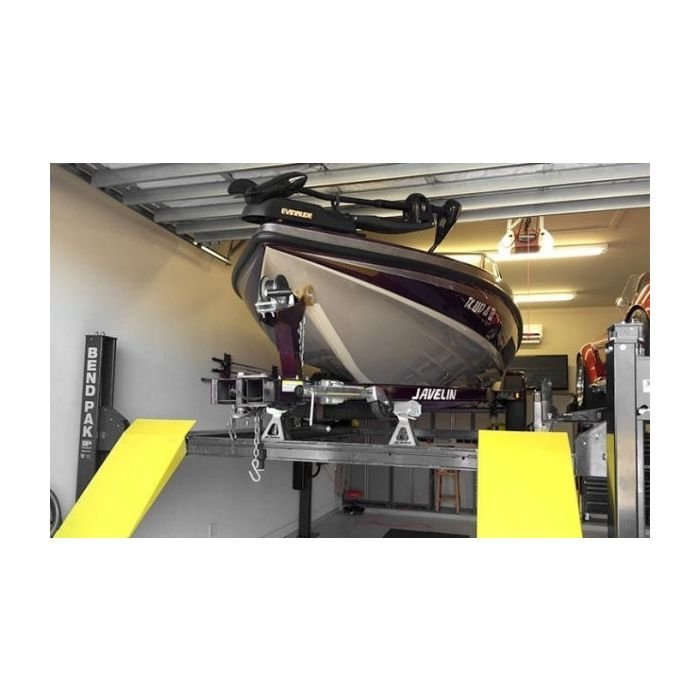

• TC-3000 Boat Trailer Tongue Platform Standard Accessory

Specifications

• Lifting capacity*:7,500 lbs. / 3,402 kg
  • *Max capacity / front axle: 3,500 lbs. / 1,701 kg
  • *Max capacity / rear axle: 3,500 lbs. / 1,701 kg
• Overall width: 132″ / 3,353 mm
• Outside length: 198″ / 5,028 mm
• Overall length: 224″ / 5,704mm
• Height of columns: 100″ / 2,232 mm
• Runway min height: 5″ / 125 mm
• Max rise: 82″ / 2,083 mm
• Max lifting height: 87″ / 2,208 mm
• Width between posts: 122″ / 3,099 mm
• Runway width: 19″ / 482 mm
• Width between runways (narrow setting): 49-1/2″ / 1,257 mm
• Width between runways (wide setting): 69-1/2″ / 1,765
• Runway centerline (narrow setting): 68-1/2″ / 1,740 mm
• Runway centerline (wide setting): 88-1/2″ / 2,248 mm
• Outside edge of runways (narrow setting): 87-1/2″ / 2,222 mm
• Outside edge of runways (wide setting): 107-1/2″ / 2,730
• Drive-thru clearance: 108-1/2″ / 2,756 mm
• Length of runways: 188″ / 4,775 mm
• Min wheelbase @ rated capacity: 135″ / 3,429 mm
• Min wheelbase @ 75% capacity: 115″ / 2,921 mm
• Min wheelbase @ 50% capacity: 95″ / 2,413 mm
• Min wheelbase @ 25% capacity: 80″ / 2,032 mm
• Locking positions: 15
• Lock spacing: every 4″ / 102 mm
• Lifting time: 50 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
