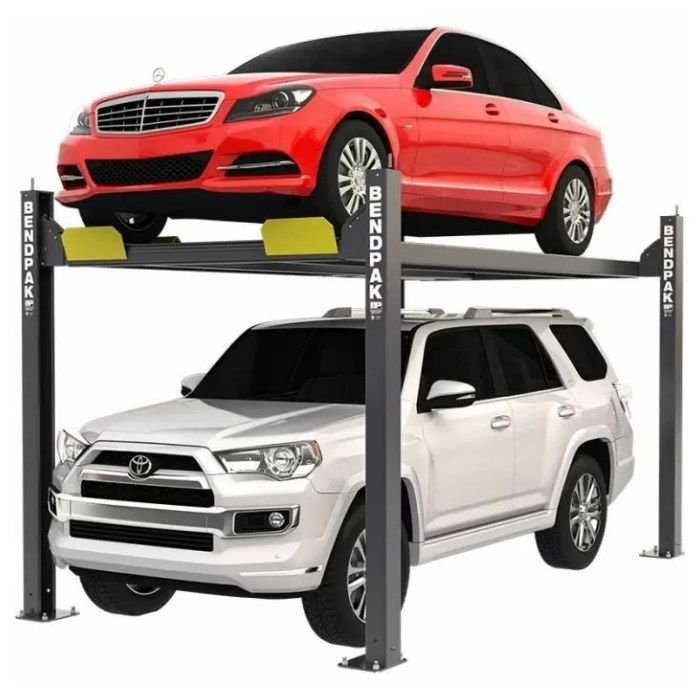

horter length and extra height, the HD-7P lift is the ultimate in compact convenience when you want the lifting power of a BendPak in a tight space.

Features

• 7,000-lbs. maximum lifting capacity
• High lift with short runways
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• High-speed lifting
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1-1/4″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release
• Removable steel approach ramps included
• Optional 4,500-lbs. capacity rolling jack available (Model RJ-45)

Specifications

• Lifting capacity*:7,000 lbs. / 3,175 kg
  • *Max capacity / front axle: 3,500 lbs. / 1,588 kg
  • *Max capacity / rear axle: 3,500 lbs. / 1,588 kg
• Overall width: 100″ / 2,542 mm
• Outside length: 174″ / 4,420 mm
• Overall length: 200″
• Height of columns: 100″ / 2,542 mm
• Runway min height: 5″ / 125 mm
• Max rise: 82″ / 2,083 mm
• Max lifting height: 87″ / 2,208 mm
• Width between posts: 90″ / 2,288 mm
• Runway width: 19″ / 482 mm
• Width between runways: 37″ / 945 mm
• Runway centerline: 56″ / 1,422 mm
• Outside edge of runways: 75″ / 1,905 mm
• Drive-thru clearance: 76-3/4″ / 1,949 mm
• Length of runways: 164-1/2″ / 4,178 mm
• Min wheelbase @ rated capacity: 115″ / 2,921 mm
• Min wheelbase @ 75% capacity: 100″ / 2,540 mm
• Min wheelbase @ 50% capacity: 85″ / 2,159 mm
• Min wheelbase @ 25% capacity: 70″ / 1,778 mm
• Locking positions: 15
• Lock spacing: every 4″ / 102 mm
• Lifting time: 45 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
• Shipping Weight: 1,942 lbs. / 883 kg
• Shipping Dimensions: 172″ x 29″ x 54″ / 4,369 mm x 737 mm x 1,372 mm
• Height to underside of runways when at top lock position – 78″
